Hermes Kanban Web

A web-based Kanban board for managing Hermes agent tasks. Features drag-and-drop task management, live event streaming via Server-Sent Events (SSE), dark/light mode, stash/restore, multi-board support, and a profile manager — all backed by a shared persistent volume with the Hermes agent.

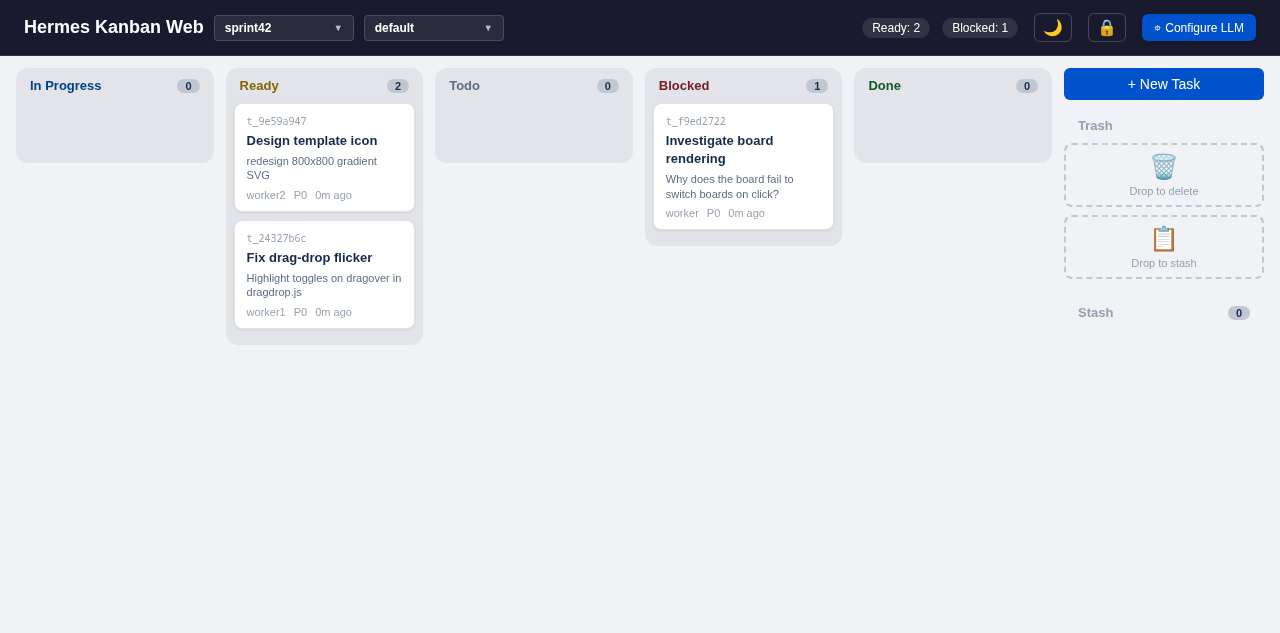

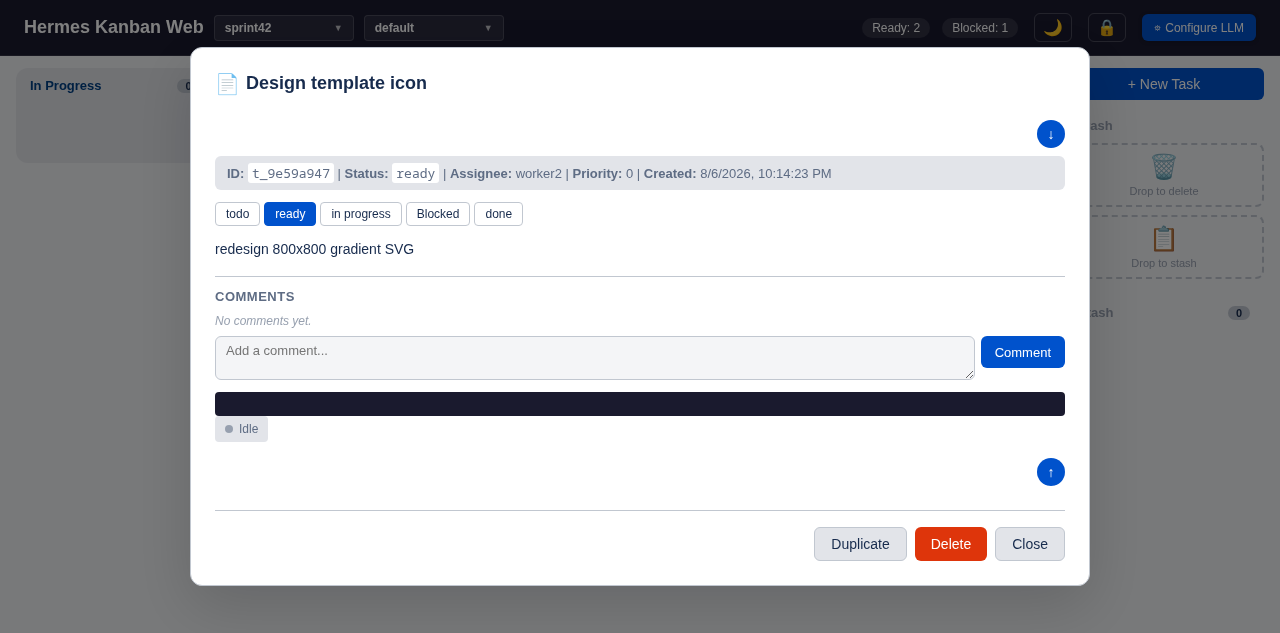

Screenshots

Deploy and Host

Host your own Hermes Kanban board in minutes with a single click. The template provisions a FastAPI + vanilla JS single-page application running inside the official nousresearch/hermes-agent Docker image, with SSH-free persistent storage for all board and profile data.

Deploy to Railway

Click the button above to deploy this template to Railway. The template creates a single service from the nousresearch/hermes-kanban-web Docker image with a persistent volume mounted at /opt/data for all board and profile data.

Dependencies for

The template is self-contained: it builds a single Docker service and needs no external databases, caches, or third-party services.

Deployment Dependencies

• A Railway account with adequate quota for one small container (Hobby or Pro plan).
• Provisioned automatically by the template: one service + one persistent volume (/opt/data).
• Optional: an LLM provider (Ollama, OpenAI-compatible, OpenAI, OpenRouter, Anthropic, or Groq) for agent task orchestration. Without one the board still works for manual task tracking.

About Hosting

The app runs inside the nousresearch/hermes-agent Docker image, so the hermes CLI is available on PATH and all persistent state (boards, profiles, config) lives under HERMES_HOME (/opt/data) on a Railway volume shared with the Hermes agent runtime. Because the data lives on a persistent volume, your boards, profiles, stashed cards and theme survive redeploys and restarts.

Why Deploy

• Zero-config self-hosting — one-click deploy, persistent volume provided, no external services to wire up.
• AI-agent-aware task board — task lifecycle operations shell out to the real hermes CLI, so the board you manage is the same system your agents run on.
• Real-time by default — SSE keeps multiple browser tabs in sync without polling or manual refresh.
• Optional auth — lock the board behind a bearer token in a single environment variable; leave it empty for an open, shared team board.
• Private by design — your tasks, profiles and agent config stay on data you control, not on a shared SaaS backend.

Common Use Cases

• Managing and visually tracking Hermes agent task queues across Todo, Ready, In Progress, Blocked, and Done.
• A lightweight team kanban that reuses existing Hermes profiles and config instead of standing up a separate issue tracker.
• Monitoring active agent workers with real-time PID liveness checks.
• Stashing WIP cards locally and restoring them later, or quick drag-to-trash cleanup.

Overview

Hermes Kanban Web is a FastAPI + vanilla JS single-page application that provides a browser-based UI for managing Hermes agent tasks. It serves as a frontend for the Hermes agent ecosystem: boards are stored as SQLite databases, task creation/status changes/comments/archive operations shell out to the hermes CLI, and real-time updates are delivered via SSE.

Features

• Multi-board support — each board is a SQLite database under HERMES_HOME/kanban/boards/
• Drag-and-drop task management — move tasks between Todo, Ready, In Progress, Blocked, and Done columns
• Live event streaming — SSE endpoint (GET /api/events/stream) polls board DBs every second and broadcasts task events to the frontend
• Dark / light theme — persisted to browser localStorage
• Task stashing — save task cards locally (disconnected from any board)
• Profile management — list, create, rename, and delete Hermes profiles; set model/describe per profile
• Dependency tracking — parent/child task links with clickable navigation
• Active worker monitoring — real-time PID liveness checks on running task workers
• Hermes CLI integration — all task lifecycle operations (create, promote, block, complete, schedule, archive, comment) delegate to the hermes CLI

Authentication (optional)

By default the board is open with no authentication. To protect the API you can set the HERMES_KANBAN_API_TOKEN environment variable (via the Railway Vars tab):

• Open (default): leave the token empty — any request is allowed.
• Protected: set HERMES_KANBAN_API_TOKEN to a secret value. Every API request (including the live SSE stream) must then send Authorization: Bearer ***

Generate a strong token with openssl rand -hex 32.

Self-hosting (Docker)

docker run -d \
  --name hermes-kanban-web \
  -p 8502:8502 \
  -e PORT=8502 \
  -e HERMES_HOME=/opt/data \
  -v hermes-data:/opt/data \
  ghcr.io/inapp-mobile/hermes-kanban-web:latest

Local Development

# Clone the repo
git clone https://github.com/INAPP-Mobile/hermes-kanban-web.git
cd hermes-kanban-web

# Install dependencies (requires Python 3.11+)
pip install fastapi uvicorn pydantic httpx pyyaml

# The app shells out to `hermes` CLI — ensure it's on PATH
# or set HERMES_HOME to an existing ~/.hermes or /opt/data directory

# Run locally
./start.sh

The app runs on http://localhost:8502.

Configuration

Environment Variables

Persistent Volume

The app stores all state under HERMES_HOME/kanban/:

HERMES_HOME/
├── config.yaml          # Hermes configuration (kanban settings, profiles)
├── profiles/            # Hermes agent profiles (one dir per profile)
│   ├── worker1/config.yaml
│   └── worker2/profile.yaml
├── kanban/
│   ├── boards/          # Per-board SQLite databases
│   │   └── /kanban.db
│   ├── stash/           # Local task stash (disconnected from boards)
│   └── theme.json       # Dark/light theme preference

In Railway, the volume is mounted at /opt/data (the default HERMES_HOME in the base image). The start.sh wrapper ensures kanban/boards/, kanban/stash/ subdirectories exist and seeds a minimal config.yaml if none is present.

LLM Setup

On a fresh deploy, no LLM provider is configured. When you open the app, a setup wizard modal appears automatically. Choose a provider, enter your base URL, model name, and API key (if applicable), then click Save & Reload. The wizard writes provider env vars to /opt/data/.env and sets the model in config.yaml via hermes config set model.

After setup, the modal will not reappear on subsequent visits. If you need to change your LLM configuration later, re-add the env vars to /opt/data/.env (via railway ssh or volume mount) and set the model with hermes config set model .

Supported Providers

Advanced: Manual Configuration

You can also set these directly on the Railway service via the Railway dashboard or CLI:

# Example: configure Ollama
railway variables set \
  OLLAMA_BASE_URL=http://host.docker.internal:11434 \
  HERMES_HOME=/opt/data
railway variables set --secret HERMES_MODEL=qwen3:8b
# Then set the model in config.yaml:
railway ssh -- sh -c 'hermes config set model qwen3:8b'

> Note: Setting env vars on the service only takes effect after a redeploy (the running uvicorn process does not hot-reload .env). The wizard handles this by requiring a page reload after save.

Architecture Notes

• Hermes CLI dependency: Task operations, profile management, and board settings shell out to the hermes CLI via subprocess.run. The hermes binary is provided by the nousresearch/hermes-agent base image's venv.
• SSE over WebSocket: The frontend uses EventSource to connect to GET /api/events/stream for real-time updates. This is an in-process SSE stream that polls board SQLite databases — no external gateway connection required.
• SQLite WAL mode: All board databases use WAL journal mode with idempotent schema migrations.
• Single container: The kanban web app runs as the sole process inside the Hermes agent container. s6-overlay's /init (PID 1) manages the process lifecycle and reaps zombies.
