Deploy and Host Gatus on Railway

Gatus is an open-source, developer-oriented health dashboard that continuously probes your endpoints over HTTP, ICMP, TCP, DNS, gRPC, WebSocket, SSH, and more, then surfaces the results on a public-or-private status page and alerts you through Slack, Discord, PagerDuty, Telegram, email, and dozens of other providers. Unlike heavier observability stacks, Gatus is a single Go binary configured by a single YAML file — perfect for monitoring your own SaaS, APIs, databases, and internal services without standing up Prometheus + Alertmanager + Grafana.

This Railway template lets you deploy Gatus on Railway in one click. The template builds a hardened Alpine image from twinproduction/gatus:stable, attaches a Railway volume for the embedded SQLite database, exposes a public HTTPS domain, and ships a configurable GATUS_CONFIG_YAML environment variable so you can paste your full Gatus configuration into the Railway dashboard without ever touching a shell.

Getting Started with Gatus on Railway

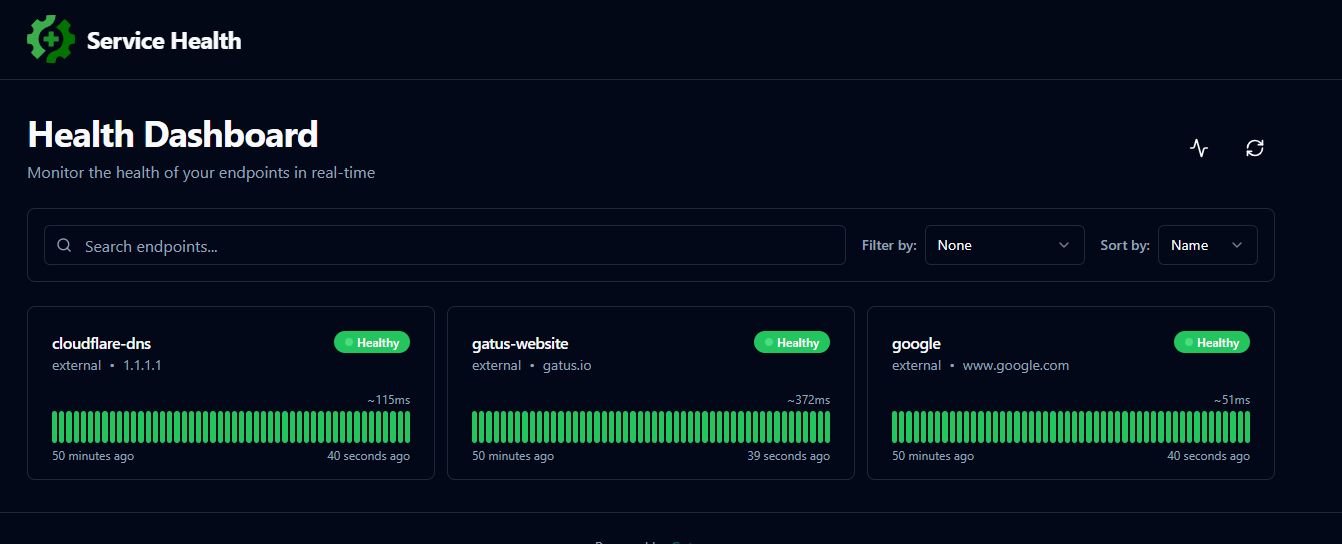

After your Railway deployment finishes, open the generated *.up.railway.app URL to see the Gatus status page running with three demo endpoints already being probed (gatus.io, google.com, 1.1.1.1). To monitor your own services, edit/add the GATUS_CONFIG_YAML variable on the Gatus service in the Railway dashboard and paste your full Gatus YAML — the entrypoint rewrites /data/config.yaml on every restart, so the next deploy picks up your changes. To lock the page behind HTTP basic auth, set GATUS_ADMIN_USERNAME and GATUS_ADMIN_PASSWORD, then redeploy — the entrypoint will bcrypt the password and inject a security: block at boot. The SQLite database at /data/gatus.db persists across redeploys thanks to the attached volume.

About Hosting Gatus

Gatus is a YAML-driven uptime monitor that runs as a single static binary. Each endpoint definition specifies a target URL, a probe interval, and a list of conditions (e.g. [STATUS] == 200, [RESPONSE_TIME] < 500, [BODY].status == UP). When any condition fails, Gatus triggers alerts and updates the status page.

Key features:

• Probes over HTTP, ICMP (ping), TCP, DNS, gRPC, WebSocket, SSH, STARTTLS, TLS
• 25+ alerting providers including Slack, Discord, Teams, PagerDuty, Telegram, email, generic webhooks
• Built-in OIDC and HTTP basic auth for protecting the status page
• Endpoint groups, maintenance windows, response-body assertions, and certificate-expiry checks
• Per-endpoint history with response-time graphs and uptime percentages

This template runs a single Gatus service backed by an embedded SQLite database on a Railway volume — no external Postgres required for small-to-medium dashboards.

Why Deploy Gatus on Railway

Railway eliminates the manual work of self-hosting Gatus:

• One-click deploy from this template — no Docker, no docker-compose
• Persistent Railway volume mounted at /data for SQLite + config
• HTTPS public domain auto-provisioned, port routing wired
• Edit GATUS_CONFIG_YAML in the dashboard, redeploy, done
• Built-in metrics, logs, and rollback in the Railway UI
• Scale CPU/RAM independently as your endpoint list grows

Common Use Cases

• Public status page for your SaaS, surfacing uptime and response times to customers
• Internal monitoring of microservices, databases, and queues over Railway's private network
• Certificate-expiry and DNS-record sanity checks across multiple production domains
• SLA reporting with Slack/PagerDuty alerts when conditions break

Dependencies for Gatus on Railway

This template deploys one Railway service built from a custom Dockerfile that combines two upstream images:

• Gatus binary: twinproduction/gatus:stable (copied via multi-stage build)
• Runtime base: alpine:3.20 (provides shell, htpasswd, ca-certificates, wget)
• Source repository: praveen-ks-2001/gatus-railway

Environment Variables Reference for Gatus on Railway

Deployment Dependencies for Self-Hosting Gatus

• Upstream project: github.com/TwiN/gatus
• Official documentation: gatus.io

Hardware Requirements for Self-Hosting Gatus on Railway

Gatus is extremely lightweight — the binary idles around 30 MB RAM.

Self-Hosting Gatus With a Custom Configuration

The fastest way to self-host Gatus on Railway is to click Deploy and then paste your Gatus YAML into GATUS_CONFIG_YAML. A minimal config that monitors two endpoints and sends a Slack alert when either fails looks like this — the YAML is what you paste into the GATUS_CONFIG_YAML env var:

storage:
  type: sqlite
  path: /data/gatus.db

alerting:
  slack:
    webhook-url: ${SLACK_WEBHOOK_URL}

endpoints:
  - name: api
    url: https://api.example.com/health
    interval: 60s
    conditions:
      - "[STATUS] == 200"
      - "[BODY].status == UP"
    alerts:
      - type: slack
        failure-threshold: 3
        send-on-resolved: true

  - name: marketing
    url: https://www.example.com
    interval: 5m
    conditions:
      - "[STATUS] == 200"
      - "[CERTIFICATE_EXPIRATION] > 168h"

Gatus performs its own ${VAR} substitution inside the YAML, so referencing Railway service variables like ${SLACK_WEBHOOK_URL} or ${{SomeService.VAR}} (Railway resolves the latter at deploy time) works without escaping. To run Gatus outside of Railway with this same image, the following is the equivalent Docker command:

docker run -d \
  -p 8080:8080 \
  -v gatus-data:/data \
  -e GATUS_CONFIG_PATH=/data/config.yaml \
  -e GATUS_CONFIG_YAML="$(cat config.yaml)" \
  ghcr.io/praveen-ks-2001/gatus-railway:latest

How Much Does Gatus Cost to Self-Host?

Gatus is fully open-source under the Apache 2.0 license — the software itself is free forever, with no paid tier. On Railway you only pay for the underlying compute, RAM, egress, and volume storage; a typical small deployment monitoring 10–50 endpoints fits comfortably inside the Hobby plan's $5 monthly credit.

FAQ

What is Gatus and Why Self-Host It on Railway?

Gatus is an open-source automated status page and health monitoring tool. Self-hosting on Railway gives you full control over the endpoints you probe (including internal services on Railway's private network) without paying per-monitor fees to a SaaS like Pingdom or Better Uptime.

How Do I Export Monitoring Data From Gatus via the REST API?

Gatus exposes every status check over HTTP, so you can pull data from anywhere with curl. The main endpoints are /api/v1/endpoints/statuses (full snapshot of all endpoints), /api/v1/endpoints/{group}_{name}/statuses?page=1&pageSize=100 (paginated history for one endpoint), and /metrics (Prometheus format, if enabled in config). Without auth:

curl https://your-gatus.up.railway.app/api/v1/endpoints/statuses > snapshot.json

If you've set GATUS_ADMIN_USERNAME / GATUS_ADMIN_PASSWORD, pass them with -u:

curl -u admin:yourpassword https://your-gatus.up.railway.app/api/v1/endpoints/statuses > snapshot.json

The response is JSON containing every endpoint, every probe result, response times, and condition pass/fail — pipe it into jq, store it in S3, or feed it to a BI tool.

Why is SQLite Used Instead of an External Postgres for Gatus?

For small-to-medium dashboards (under a few hundred endpoints), Gatus's embedded SQLite storage is faster, cheaper, and zero-maintenance compared to running a separate Postgres service. You can swap to Postgres later by editing GATUS_CONFIG_YAML.

How Do I Enable HTTP Basic Auth in Self-Hosted Gatus on Railway?

Set GATUS_ADMIN_USERNAME and GATUS_ADMIN_PASSWORD on the Gatus service in Railway, then trigger a redeploy. The entrypoint script bcrypts the password and injects a security.basic block into /data/config.yaml automatically. To switch to OIDC instead, add a security.oidc: block directly inside GATUS_CONFIG_YAML.

What Format Should I Use for the GATUS_CONFIG_YAML Variable?

Paste a standard Gatus YAML configuration — the same format the upstream project uses, with storage:, endpoints:, and optional alerting: / security: blocks. Gatus does its own ${VAR} substitution at load time, so secrets can stay as env-var references. A minimal working example:

storage:
  type: sqlite
  path: /data/gatus.db

endpoints:
  - name: my-api
    url: https://api.example.com/health
    interval: 60s
    conditions:
      - "[STATUS] == 200"
      - "[RESPONSE_TIME] < 1000"
      - "[BODY].status == UP"

  - name: marketing-site
    url: https://www.example.com
    interval: 5m
    conditions:
      - "[STATUS] == 200"
      - "[CERTIFICATE_EXPIRATION] > 168h"

After pasting and saving, Railway redeploys automatically. The entrypoint writes the YAML to /data/config.yaml on boot, so your changes take effect on the next container start. Full schema reference: gatus.io/docs.
