Deploy and Host Supabase on Railway

Supabase is an open-source Firebase alternative that gives you a hosted PostgreSQL database, authentication, file storage, real-time subscriptions, auto-generated REST and GraphQL APIs, and edge functions — all behind a single API gateway. Self-host Supabase on Railway when you want the full Firebase developer experience without vendor lock-in, and the freedom to run on your own infrastructure with a single click.

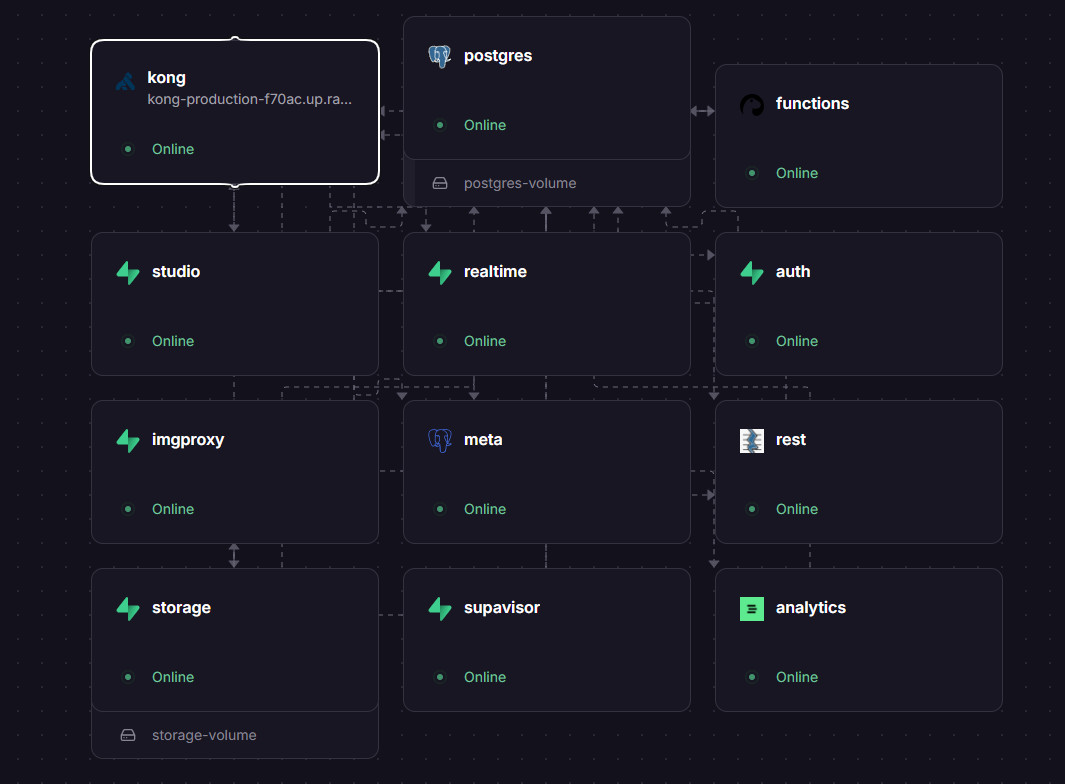

This Railway template deploys the complete twelve-service Supabase stack — postgres, kong (API gateway), auth (GoTrue), rest (PostgREST), realtime, storage, imgproxy, meta (postgres-meta), functions (edge-runtime), analytics (Logflare), studio (the dashboard), and supavisor (connection pooler) — pre-wired with cross-service references, JWT keys, and a public domain pointing at Kong. The Vector log shipper is intentionally omitted because it requires docker.sock access that Railway does not expose; Railway's own logging serves the same purpose.

Getting Started with Supabase on Railway

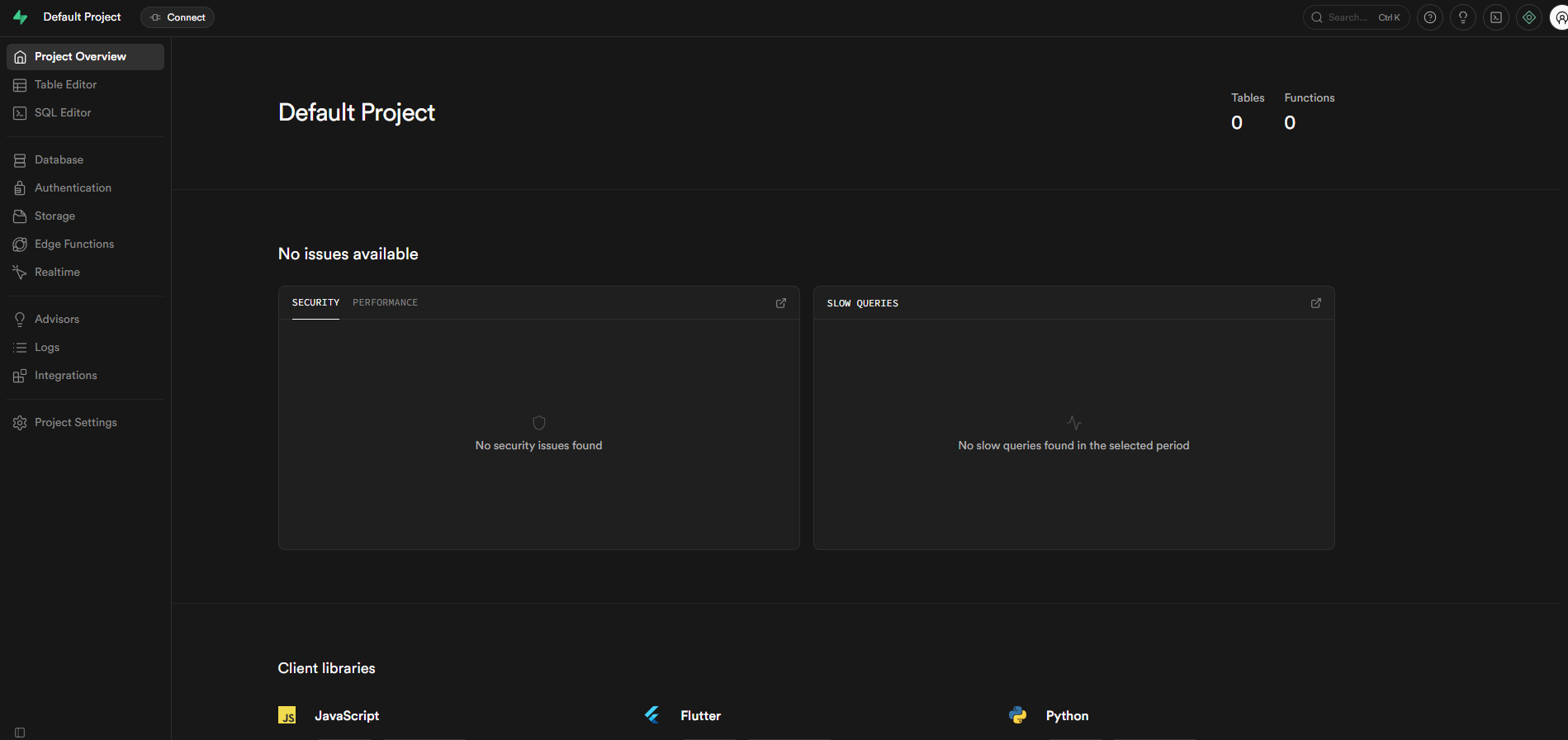

After the deployment finishes, visit the public URL Railway assigned to the kong service. You'll be prompted for the dashboard basic-auth credentials defined by DASHBOARD_USERNAME and DASHBOARD_PASSWORD — log in to land on Supabase Studio's project page. From there you can create tables in the SQL editor, generate API keys, configure Row Level Security policies, set up email or social auth providers, upload files into storage buckets, write edge functions, and wire your client SDKs against the same Kong public URL using the auto-generated ANON_KEY and SERVICE_ROLE_KEY. Visit Project Settings → API to copy the keys into your application code.

About Hosting Supabase

Supabase wraps a vanilla PostgreSQL 15 database with a constellation of microservices that turn it into a complete backend-as-a-service. Every feature is just SQL underneath, which means you keep the predictability and tooling of a relational database while getting Firebase-style ergonomics on top.

Key features:

• PostgreSQL 15 with pgvector, pg_graphql, pgsodium, pg_net, pgjwt extensions for AI embeddings, GraphQL, encryption, HTTP calls, and JWT minting
• Email and OAuth authentication via GoTrue, including Apple, Google, GitHub, Discord, Slack, and SAML SSO
• Auto-generated REST and GraphQL APIs from your schema via PostgREST
• Real-time subscriptions over WebSocket via Phoenix
• S3-compatible object storage with on-the-fly image transformations
• Deno-based edge functions for server-side logic
• Built-in Studio UI for table editing, SQL queries, log inspection, and storage management

Why Deploy Supabase on Railway

Run the entire Supabase stack on Railway's infrastructure with a single deploy:

• One-click provisioning of all 12 services with cross-service references already wired
• Automatic public HTTPS domain on the Kong gateway with target-port routing
• Pay only for the compute and storage you actually use, no per-row pricing surprises

Common Use Cases

• Mobile and web app backends that need auth, database, and storage in one place
• Migrating off Firebase to keep relational schemas, RLS, and SQL ergonomics
• Internal tools that benefit from auto-generated REST APIs and Studio's table editor
• AI applications using pgvector for semantic search and Retrieval Augmented Generation

Dependencies for Self-Hosting Supabase

The template provisions the following services from their official Docker images and three Strategy D custom images:

• postgres — praveen-ks-2001/supabase-postgres-railway (extends supabase/postgres:15.8.1.085 with init SQL scripts)
• kong — praveen-ks-2001/supabase-kong-railway (extends kong/kong:3.9.1 with declarative config and entrypoint)
• supavisor — praveen-ks-2001/supabase-supavisor-railway (extends supabase/supavisor:2.7.4 with pooler tenant seed)
• auth — supabase/gotrue:v2.186.0
• rest — postgrest/postgrest:v14.8
• realtime — supabase/realtime:v2.76.5
• storage — supabase/storage-api:v1.48.26
• imgproxy — darthsim/imgproxy:v3.30.1
• meta — supabase/postgres-meta:v0.96.3
• functions — supabase/edge-runtime:v1.71.2
• analytics — supabase/logflare:1.36.1
• studio — supabase/studio:2026.04.27-sha-5f60601

Environment Variables Reference

Deployment Dependencies

• Source: supabase/supabase (docker self-host)
• Docs: supabase.com/docs/guides/self-hosting

Hardware Requirements for Self-Hosting Supabase on Railway

How to Self-Host Supabase

The reference deployment lives in three custom repositories that the Railway template builds directly from GitHub. The Postgres service uses a wrapper start command to handle Railway's volume layout:

/bin/bash -c "mkdir -p /var/lib/postgresql/data/pgdata && chown -R postgres:postgres /var/lib/postgresql/data && export PGDATA=/var/lib/postgresql/data/pgdata && exec docker-entrypoint.sh postgres -c config_file=/etc/postgresql/postgresql.conf -c data_directory=/var/lib/postgresql/data/pgdata -c log_min_messages=fatal"

Kong is published to the public domain by setting its target port to 8000 — every other service stays on *.railway.internal and is reached only through Kong's declarative routes:

SUPABASE_AUTH_HOST=${{auth.RAILWAY_PRIVATE_DOMAIN}}
SUPABASE_REST_HOST=${{rest.RAILWAY_PRIVATE_DOMAIN}}
SUPABASE_STORAGE_HOST=${{storage.RAILWAY_PRIVATE_DOMAIN}}
KONG_DECLARATIVE_CONFIG=/tmp/kong.yml

How Much Does Supabase Cost to Self-Host on Railway?

Supabase itself is open source under Apache 2.0 — there are no licensing fees for any of the twelve services. On Railway you pay only for the compute, RAM, and storage your services consume. Expect roughly $20–40/month for a low-traffic deployment on the Pro plan, scaling with the size of your postgres and storage volumes. Supabase Cloud's hosted Pro plan starts at $25/month with usage-based add-ons; self-hosting on Railway is comparable for small workloads and far cheaper as data and traffic grow.

FAQ

What is Supabase and why self-host it? Supabase is an open-source Firebase alternative built on PostgreSQL. Self-hosting on Railway gives you the full Supabase developer experience (auth, storage, realtime, edge functions, studio) without vendor lock-in, with full control over your database, and predictable infrastructure pricing.

Why does the template include imgproxy, analytics, and meta? imgproxy powers Storage's on-the-fly image resizing and format conversion. analytics (Logflare) powers Studio's "Logs" tab so you can inspect API and database activity. meta (postgres-meta) is what Studio's table editor uses to introspect and modify your schema.

Why is Vector not included? Upstream Supabase uses Vector to scrape docker.sock for container logs and ship them to Logflare. Railway does not expose docker.sock, so Vector cannot run. Railway's own log viewer covers the same use case.

Can I use Railway-managed Postgres instead of supabase/postgres? No. Self-hosted Supabase requires PostgreSQL extensions (pgsodium, pg_graphql, pg_net, pgjwt) that Railway-managed Postgres does not include. The template uses the supabase/postgres image specifically for these extensions.

How do I connect my Supabase JS client to the deployed instance? Use Kong's public domain as SUPABASE_URL and the ANON_KEY from the deployment as the SUPABASE_ANON_KEY argument to createClient(). Both values are visible in your Railway project variables.

How do I rotate the JWT secret without breaking existing sessions? Update JWT_SECRET on every service that references it (auth, rest, realtime, storage, functions, studio, supavisor), then redeploy each. All previously-issued tokens become invalid — clients must sign in again. Re-mint ANON_KEY and SERVICE_ROLE_KEY with the new secret using any HS256 JWT signer.

Supabase vs Firebase

Supabase wins for relational data, RLS-at-the-database-level security, vector search via pgvector, and self-hosting freedom. Firebase still has the edge for mobile-first apps deeply integrated with the Google ecosystem.
